Route agentgateway LLM traffic to foundation models on Amazon Bedrock.

Configure Amazon Bedrock as an LLM provider in agentgateway.

Bedrock conversion turns the prompt-cache markers in /v1/messages and /v1/chat/completions requests into Bedrock cache points, including markers on content that the conversion does not send. In /v1/messages requests, the Anthropic cache_control.ttl value becomes the TTL of the cache point. For where a marker on dropped content goes, see Converting to the Bedrock Converse format. In /v1/chat/completions requests, a text part that contains only whitespace is not sent, and the marker on that text part moves to the end of the content before the text part in the same message.

Authentication

Before you can use Bedrock as an LLM provider, you must authenticate by using the standard AWS authentication sources. Agentgateway will automatically detect the local ambient credentials, but these can be explicitly configured with auth.aws.

Configuration

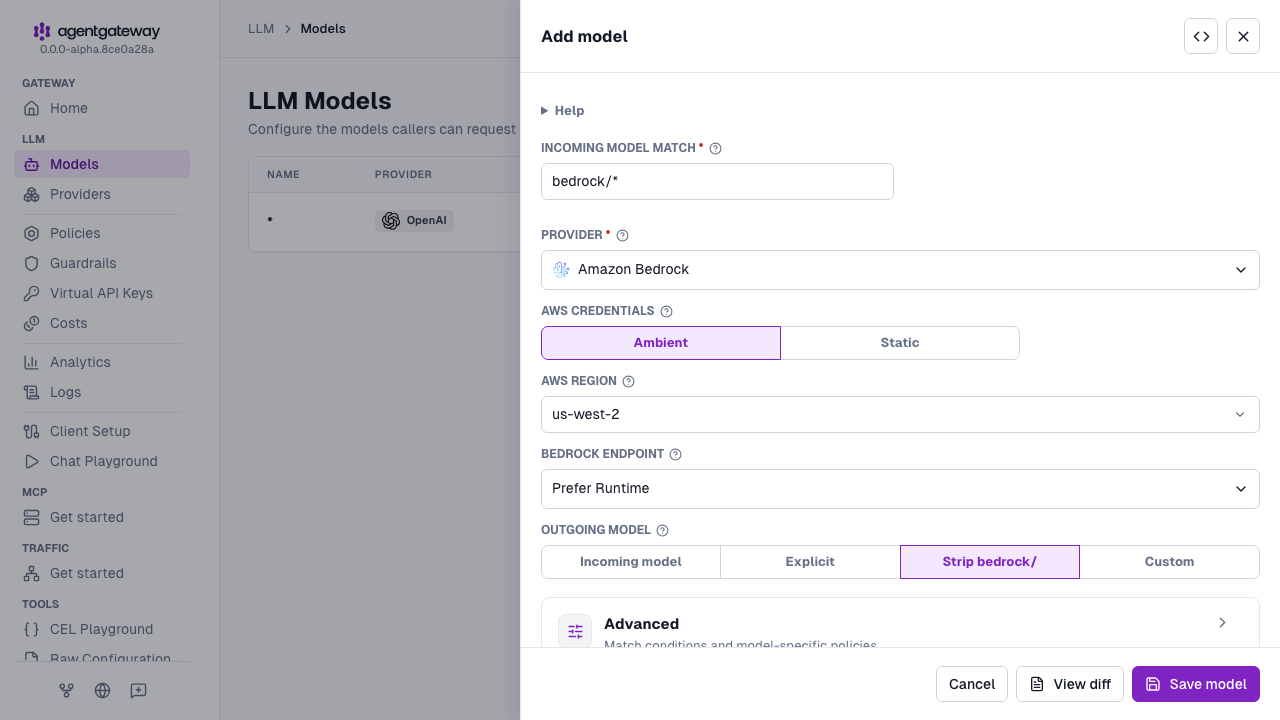

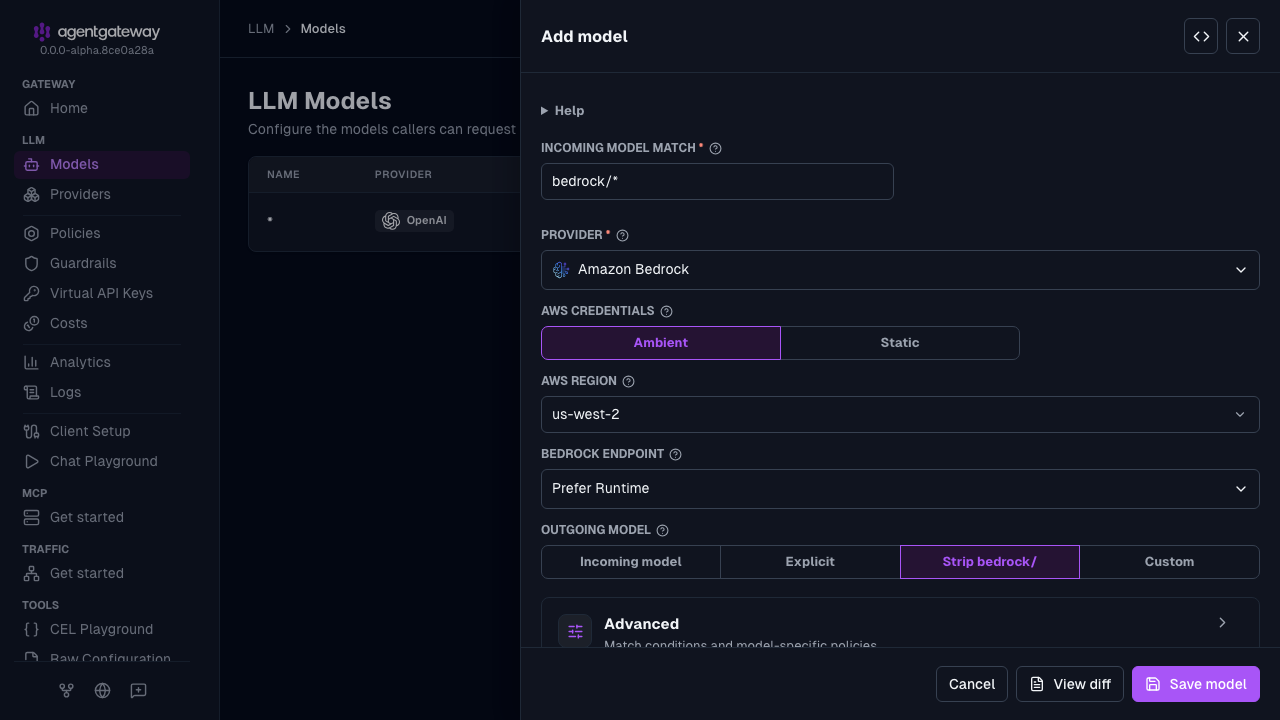

You can add the model in the UI or in your configuration file.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
llm:
  models:
  - name: "bedrock/*"
    provider: bedrock
    params:
      awsRegion: us-west-2
    transformation:
      model: llmRequest.model.stripPrefix("bedrock/")

Passthrough

If your applications directly use the AWS Converse or Invoke APIs, Agentgateway cannot translate these APIs to other providers. However, it can pass the request through to Bedrock itself following the passthrough approach.

This can provide telemetry data for these requests.

First, setup passthrough mode:

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
llm:
  models:
  - name: us.anthropic*
    provider: bedrock
    params:
      awsRegion: us-west-2
    passthrough: detect

Then, you can send native Converse and Invoke requests:

import json

import boto3

client = boto3.client(
    'bedrock-runtime',
    region_name='us-west-2',
    endpoint_url='http://localhost:4000',
)
response = client.converse(
    modelId='us.anthropic.claude-sonnet-4-6',
    messages=[
        {
            'role': 'user',
            'content': [{'text': 'give 1 word answer'}]
        }
    ]
)
print('converse response:')
print(response)

import json

import boto3

client = boto3.client(
    'bedrock-runtime',
    region_name='us-west-2',
    endpoint_url='http://localhost:4000',
)
response = client.invoke_model(
    modelId='us.anthropic.claude-sonnet-4-6',
    body=json.dumps({
        'anthropic_version': 'bedrock-2023-05-31',
        'max_tokens': 10,
        'messages': [
            {
                'role': 'user',
                'content': [{'type': 'text', 'text': 'give 1 word answer'}],
            }
        ],
    }),
)
body = json.loads(response['body'].read())

print('invoke response:')
print(body)

Claude Platform on AWS

See here for connect to Claude Platform on AWS.

Bedrock Mantle

Bedrock serves models on two API surfaces: the Runtime endpoint, which carries the Converse and Invoke APIs, and the Mantle endpoint, which carries the native OpenAI and Anthropic APIs. Some models are served on only one of the two.

For chat requests, the endpoint is chosen per model from the runtime and mantle tags in the model cost catalog. The built-in catalog that ships with agentgateway already tags the Amazon Bedrock models. To tag models that are newer than your agentgateway version, run agctl catalog import. Its default sources include aws-bedrock-mantle, which reads the tags from the AWS model cards. A model with neither tag falls back to the preference alone.

Set params.bedrockEndpointPreference to choose how the tags are applied. You can set the preference in the UI or in your configuration file.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
llm:
  models:
  - name: "*"
    provider: bedrock
    params:
      awsRegion: us-west-2
      bedrockEndpointPreference: runtimePreferred

Inline Bedrock guardrails are available only on route and backends AI backends, through the ai.provider.bedrock.guardrailIdentifier and guardrailVersion fields. Those backends set the preference in ai.provider.bedrock.endpointPreference. llm.models and llm.providers have no inline guardrail fields, and a params.guardrailIdentifier setting fails to load with an unknown field error. An inline guardrail requires the Runtime endpoint:

• If either guardrail field is set together with mantlePreferred or mantleOnly, the configuration fails to load with Bedrock guardrails cannot be used with MantlePreferred or MantleOnly.
• With runtimePreferred, an inline guardrail keeps requests on Runtime even when the model tags would choose Mantle.

To apply Bedrock Guardrails with either endpoint, including on llm.models, use a Bedrock Guardrails prompt guard in guardrails.request[].bedrockGuardrails or guardrails.response[].bedrockGuardrails.

The Kubernetes API takes the same four values capitalized, such as RuntimePreferred, under spec.ai.provider.bedrock.endpointPreference. A value that you copy from one mode to the other fails to load.

In the agentgateway UI, the LLM Models and LLM Providers editors set bedrockEndpointPreference to mantlePreferred when you change an entry’s provider to Amazon Bedrock. An existing Bedrock entry that does not set bedrockEndpointPreference shows Prefer Runtime in the Bedrock endpoint selector and keeps the runtimePreferred default. The UI writes the field only after you choose a value and save the entry.

The preference applies to four route types: chat completions, messages, responses, and Anthropic token counting. Every other route type ignores the preference and uses a fixed endpoint.

• Model listing always uses Mantle.
• Embeddings, realtime, Gemini token counting, detection, passthrough, and content generation always use Runtime.
• Reranking uses a separate Bedrock agent-runtime host rather than the Runtime or Mantle endpoint.

Whether the preference changes the request format that a model accepts depends on the endpoint that it selects. A model that resolves to Runtime accepts the Bedrock Converse format only, and its chat format tags do not apply. A model that resolves to Mantle accepts the formats in its tags, except for anthropic.claude* models, which always take the Anthropic Messages format. For more information, see Chat format tags.

When a /v1/messages or /v1/messages/count_tokens request reaches Bedrock Mantle in the Anthropic Messages format, the request keeps the client anthropic-version header. If the client sends no version header, the request uses the default 2023-06-01 version.

Tool choice

When a chat request goes to Bedrock Runtime, the tool_choice value from the client request is converted to the Bedrock Converse toolChoice field.

The Bedrock model decides which values it accepts. If the model rejects forced tool use, such as any or a named tool, the client receives the Bedrock error. For example, Anthropic models reject forced tool use when extended thinking is enabled. The tool choice is not changed for requests that use extended thinking.

Service tier

For /v1/chat/completions and /v1/responses requests to Bedrock Runtime, agentgateway converts OpenAI service_tier to Converse serviceTier. This selects the Bedrock service tier.

A /v1/messages request does not set a Bedrock service tier.

If the Bedrock model does not support the requested tier, the request fails with 400. For example: The provided service tier is not supported for this model.

Earlier versions omitted the tier and used the standard tier. To keep that behavior, omit service_tier or set it to auto.

Bedrock reports the served tier in the x-amzn-bedrock-service-tier response header. Agentgateway normalizes it as llm.serviceTier to select model catalog rates. The built-in catalog has no Bedrock service-tier rates. To price Bedrock tiers differently, add serviceTier tiers for your Bedrock models to your own catalog. For more information, see Service tiers.

Token counting

Bedrock supports token counting for Anthropic models via the count_tokens endpoint. Agentgateway automatically handles the required formatting for Bedrock’s count-tokens endpoint.

curl -X POST http://localhost:4000/v1/messages/count_tokens \
  -H "Content-Type: application/json" \
  -d '{
    "model": "bedrock/anthropic.claude-3-5-sonnet-20241022-v2:0",
    "messages": [{"role": "user", "content": "Hello!"}],
    "system": "You are a helpful assistant."
  }'

Example response:

{
  "input_tokens": 15
}

Extended thinking and reasoning

Extended thinking and reasoning lets models reason through complex problems before generating a response. To opt in, add the OpenAI reasoning_effort field to your request. The value is added to the additionalModelRequestFields of the Bedrock request, in a form that depends on the model family. The family is chosen by matching the model ID.

For Claude models that support adaptive thinking, the request is sent with thinking.type set to adaptive and the effort level in output_config.effort, instead of a token budget. The value minimal is sent as low. Which models take this form depends on the adaptive_thinking tag in the model cost catalog. The built-in catalog sets this tag for these models.

Other Claude models, such as us.anthropic.claude-opus-4-20250514-v1:0, receive a thinking budget.

Note that max_tokens must be greater than the thinking budget, and the minimum thinking budget is 1,024 tokens.

curl "localhost:4000/v1/chat/completions" -H content-type:application/json -d '{
  "model": "bedrock/us.anthropic.claude-opus-4-20250514-v1:0",
  "max_tokens": 6000,
  "reasoning_effort": "high",
  "messages": [
    {
      "role": "user",
      "content": "Explain the trade-offs between consistency and availability in distributed systems."
    }
  ]
}' | jq

Encrypted reasoning

Some Bedrock models return encrypted reasoning in a reasoningContent.redactedContent block instead of reasoning text. How agentgateway returns encrypted reasoning in a buffered reply depends on the API that the client sends.

Replay streamed encrypted reasoning the same way as buffered reasoning. Stream events depend on the client API.

For /v1/messages streams, agentgateway buffers encrypted reasoning until the block ends. If the buffered fragments exceed the LLM buffer limit, the stream emits an api_error event with Stream processing error and stops. The limit is 32 MiB unless you set frontendPolicies.http.maxBufferSize. For more information, see Body buffering.

Structured outputs

Structured outputs constrain the model to respond with a specific JSON schema. Provide the schema definition in the OpenAI response_format field of your request. Agentgateway translates this to Bedrock’s native format automatically.

curl "localhost:4000/v1/chat/completions" -H content-type:application/json -d '{
  "model": "bedrock/us.anthropic.claude-opus-4-20250514-v1:0",
  "max_tokens": 256,
  "response_format": {
    "type": "json_schema",
    "json_schema": {
      "name": "answer_schema",
      "schema": {
        "type": "object",
        "properties": {
          "answer": { "type": "string" },
          "confidence": { "type": "number" }
        },
        "required": ["answer", "confidence"],
        "additionalProperties": false
      }
    }
  },
  "messages": [
    {
      "role": "user",
      "content": "Is the sky blue? Respond with your answer and a confidence score between 0 and 1."
    }
  ]
}' | jq
